Short answer
- Static GPS surveying is a high accuracy positioning methodology in which one or more GPS receivers remain completely stationary over survey points while they record satellite signals for a planned observation session. The receivers do not produce final survey coordinates in the field. Instead, the recorded observations are processed afterward, usually by comparing them with observations from another receiver at a known point or from a continuously operating reference station. This differencing approach cancels many errors that affect both receivers in a similar way and allows precise baselines to be calculated between points. Sessions commonly last from about 30 minutes to two hours for ordinary control work, and longer sessions are used for longer baselines or higher accuracy requirements. The method is slower than real-time methods, but it remains standard for survey control, national reference ties, and deformation monitoring, where accuracy and a checkable record matter more than speed.
Introduction
When a bridge, a property boundary, or a monitoring station needs a position that can be trusted to within a few centimeters, surveyors do not rely on the quick position shown by an ordinary navigation receiver. They use a slower, more deliberate method. In static GPS surveying, receivers stay fixed over survey points, record satellite signals for a planned period, and the resulting data are processed later in the office to produce precise coordinates.
This article explains that method from start to finish. It describes what the equipment does in the field, why observation time matters, how baselines connect points into a network, and how post-processing turns raw satellite observations into coordinates that can be checked. It also explains where static surveying fits alongside faster methods such as real-time kinematic surveying, and where it is not the right choice.
The banked search phrase behind this article includes the words “industry report.” That wording can suggest a purchasable market report, but this article is not one. It contains no market sizes, sales figures, or vendor claims. It is a methodology explainer only, based on guidance from geodetic institutions and university surveying resources.
What Static GPS Surveying Is
Static GPS surveying belongs to the family of relative positioning methods. That term has a specific meaning. The surveyor is not asking a single receiver to fix its own position from satellite signals alone, as a phone or car navigation unit does. Instead, two or more receivers observe the same satellites at the same time, and the processing compares their observations. The difference between the receivers is what matters, because it defines the vector, or baseline, between them.
Each receiver records two main measurements. The code measurement, or pseudorange, compares signal timing and gives a rough, noisy distance. The carrier phase measurement tracks the phase of the signal itself and is far more precise, but it has an ambiguity: the receiver measures the fractional part of a cycle well, yet does not immediately know how many whole cycles lie between satellite and antenna. Resolving that integer ambiguity is a central post-processing task and a major reason static sessions need time, since changing satellite geometry helps separate the true ambiguity from other errors.
A static survey therefore has two phases: careful setup, uninterrupted observation, and complete records in the field, and processing, checking, and adjustment in the office. Neither phase can fully compensate for carelessness in the other.
How Static Surveying Differs From Kinematic and RTK Methods
Modern survey receivers normally track several satellite constellations, and the wider term for the system is GNSS. The static method is the same whatever the constellation mix: stationary receivers, simultaneous observations, and later processing.
Surveyors choose between static and moving methods based on a trade-off between accuracy, speed, and the need for a checkable result. Understanding that trade-off is the quickest way to understand when static surveying is worth its extra time.
In kinematic surveying, the receiver moves while it collects data. A rover receiver may walk or drive a route, stopping briefly at points of interest, while a base receiver stays fixed. Post-processed kinematic surveying, often shortened to PPK, processes the moving data after the survey. It can collect many points quickly, which suits topographic detail and corridor mapping, but it depends on keeping continuous satellite lock. If lock is lost, for example under a bridge or dense tree cover, the receiver must reinitialize, and the affected stretch may need to be redone.
Real-time kinematic surveying, or RTK, goes further: the base station sends corrections to the rover by radio or mobile link during the survey, so coordinates are available in the field in near real time. That suits setting out and detail work, but it depends on the correction link. If the link drops, real-time accuracy drops with it, unless the receiver was also logging raw data for later reprocessing.
Static surveying gives up that immediacy. The receiver stays put, the session runs its course, and nobody knows the final adjusted coordinate until processing is complete. In return, the method gains redundancy. A long, uninterrupted session contains many observations of the same baseline under changing satellite geometry. Errors that vary with time tend to average down, ambiguities can be resolved with more confidence, and the same data can be reprocessed, checked against repeat observations, and adjusted as part of a network. That is why static surveying remains the primary technique for GPS and GNSS control work, even though faster methods exist.
Fast static, or rapid static, surveying sits between the two. It uses the same stationary principle with shorter occupations, often minutes rather than hours, suited to short baselines where ambiguities resolve quickly. A specification should state which variant it requires, since a session adequate for a short baseline can be inadequate for a long one.

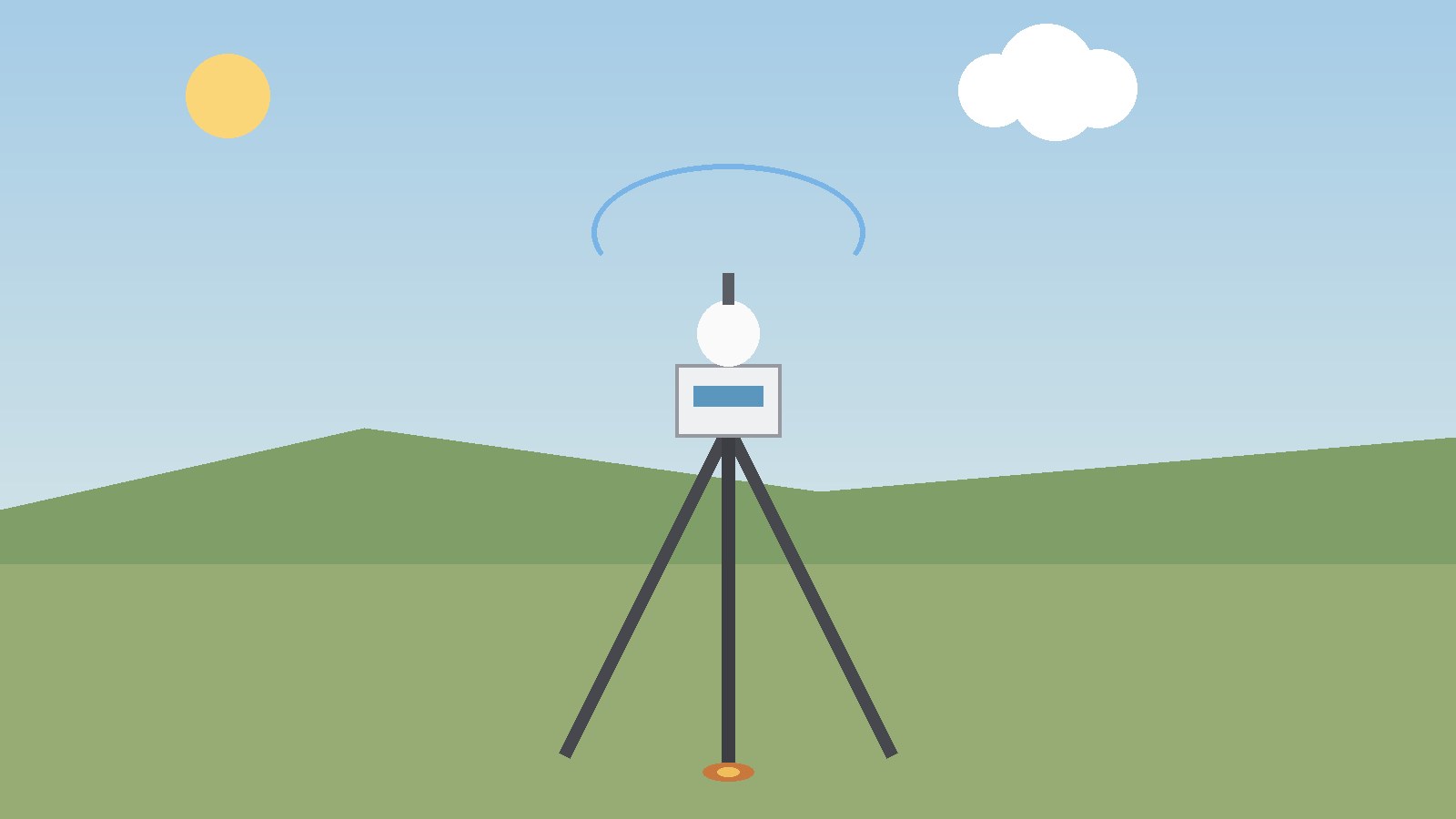

Equipment and Setup
A static GPS survey uses a small set of components, and each one has a job that affects accuracy. The receiver itself records satellite signals and stores the raw observations. Survey grade receivers normally track signals on two frequencies, which helps the processing model and correct for delays in the ionosphere, the electrically charged upper layer of the atmosphere. Single-frequency receivers can be used for short baselines and lower precision work, but they are more limited when baselines lengthen or accuracy requirements tighten.
The antenna is as important as the receiver. It must be centered exactly over the survey point and leveled so that it stays vertical. Surveyors use a tripod or a fixed-height pole, a tribrach for centering and leveling, and an optical plummet or laser plummet to check that the antenna is over the mark. The height of the antenna above the mark, measured to a defined reference point on the antenna, must be recorded carefully, because every height error transfers directly into the computed height of the point. A common field discipline is to measure the height at the start and again at the end of the session, and to record it in both the receiver file and a written field log, so that a transcription error can be caught.
Power and storage need planning too: spare batteries and a memory check before a session that may run for hours. The receiver also needs a clear view of the sky, since buildings, trees, and nearby metal structures can block signals or reflect them, creating multipath error.
Site selection comes before setup: open sky, a stable mark, and a safe position. Under tree cover or beside a tall building, static GPS may be the wrong tool, and a conventional total station survey may be needed.
Planning an Observation Session
No static session should start without a plan that states its purpose, its accuracy requirement, and its session length. The purpose determines everything else. A tie to a national reference frame, a primary control network for a construction project, and a repeat monitoring survey each have different tolerances and different checking requirements, even if the field procedure looks similar.
Session length is the most visible planning decision. Penn State guidance describes relative static sessions that usually last from 30 minutes to two hours, with examples showing why one fixed duration is misleading. With eight satellites and a 10 kilometer baseline, half an hour to an hour would typically be required, but with only four satellites the same baseline might need one to two hours. With six satellites and good geometry, baselines of 10 kilometers or less might need 45 minutes to one hour, while baselines over 20 kilometers might need two hours or more. Longer baselines, fewer satellites, and weaker geometry all push session length upward.
That logic also explains why satellite prediction matters. Before fieldwork, surveyors check which satellites will be visible and whether a session falls in a period of poor geometry, measured by dilution of precision values such as PDOP. A session in a geometry gap may need to be lengthened or moved.
Baselines and Network Design
A baseline is the three-dimensional vector between two simultaneously observing receivers. Processing produces its components, usually expressed as differences in latitude, longitude, and height, or in a local coordinate system, together with quality statistics. A single baseline can position one new point relative to one known point, but a survey network is stronger than any single baseline.
Good design builds in redundancy. Each new point should be connected by more than one baseline, and baselines should form closed loops that return to their starting point. A large loop misclosure warns that a baseline contains an error, such as a wrong antenna height or misidentified point. Repeat baselines, observed again on a different day and time, provide a stronger check under different geometry and atmospheric conditions.
Published surveying guidance treats repeat observation as quality control, not an optional extra, for high accuracy control work. A tolerance of two centimeters for repeat baseline differences appears in National Geodetic Survey guidance material for certain applications. Specifications vary, so the surveyor must follow the tolerance stated for the job, but a coordinate never checked by an independent observation is weaker.
Control points also shape the network. Tying to several published marks or reference stations, rather than one, lets the adjustment detect a disturbed or misidentified mark. If all baselines hang from a single point, an error in that point moves the whole network without warning.
Post-Processing Step by Step
Post-processing is where raw observations become coordinates, and it follows a logical sequence that a reader can follow even without using the software.
First, field data are downloaded and converted to a common exchange format. The Receiver Independent Exchange Format, or RINEX, lets receivers from different manufacturers be used together. Checking that file names, point names, antenna types, and antenna heights match the field logs prevents many errors.
Second, the processor forms baselines. For each pair of simultaneously observing receivers, it combines observations, applies orbit and clock models, and attempts to resolve carrier phase ambiguities. A fixed solution means ambiguities were resolved to whole numbers with confidence, which is the result wanted. A float solution means they remain estimated, non-integer values and is less reliable, prompting investigation such as removing a satellite with noisy data.
Third, the processor applies atmosphere models. Signals slow in the troposphere and are delayed in the ionosphere, and dual-frequency data help estimate the ionospheric effect. Precise satellite orbit information, or precise ephemerides, replaces broadcast orbits when the highest accuracy is needed, but it is not available immediately, so final processing must allow for that delay.
Fourth, the baselines are adjusted together, usually by least squares, which distributes small inconsistencies, produces final coordinates, and reports residuals and accuracy estimates. A minimally constrained adjustment holds only one point fixed and tests internal consistency, while a fully constrained adjustment holds the project control points fixed. Comparing the two can reveal an inconsistent control point.
Finally, heights need separate attention. GPS processing gives ellipsoid heights, relative to a mathematical ellipsoid. Most engineering work needs orthometric heights, relative to a vertical datum such as the North American Vertical Datum of 1988 in the United States. Converting between the two requires a geoid model, which has its own accuracy limits and should be stated in the deliverables.
Online services illustrate the same workflow in simplified form. The National Oceanic and Atmospheric Administration Online Positioning User Service, known as OPUS, lets a user upload a static file and receive coordinates computed relative to Continuously Operating Reference Stations, which NOAA describes as accurate within a couple of centimeters. Its static option handles longer sessions, while its rapid static option handles shorter sessions with stricter quality requirements. OPUS suits a single point, but it does not replace a designed network adjustment for a multi-point project.
Accuracy Factors
Static GPS accuracy is not a single number stamped on a receiver. It is the result of several factors acting together, and a surveyor who understands them can plan sessions that meet a specification instead of hoping that they will.
Satellite geometry is the first factor. Widely spread satellites give strong intersecting angles, while clustered satellites weaken the solution, so small errors translate into larger position errors. Dilution of precision values summarize this effect, with lower values indicating stronger geometry. Long sessions help because they sample a wider range of geometry.
Baseline length is the second factor. Many errors grow with distance, because conditions above the two ends of a long baseline are less similar than above a short one. Penn State guidance expresses static accuracy as ranging from 1 part per million to 0.1 parts per million over tens of kilometers. One part per million is one millimeter per kilometer, so a 10 kilometer baseline at that level would carry about one centimeter of proportional error before other effects are added. That is a planning guide, not a guarantee for any single baseline.
Atmospheric effects form the third factor. The ionosphere varies with solar activity, time of day, and latitude, and it affects frequencies differently, which is why dual-frequency receivers have an advantage. The troposphere effect is larger for low elevation satellites, so processing normally applies an elevation mask that ignores satellites very close to the horizon.
Multipath and obstruction form the fourth factor. A reflected signal travels farther than the direct signal, so it biases the measurement. Open sky and avoidance of nearby reflective surfaces reduce the risk, and no processing step can invent observations that were never recorded.
Antenna height and centering form the fifth factor, and they are entirely under surveyor control. A height error of one centimeter becomes a height error of one centimeter in the result, and a centering error moves the horizontal position by the same amount.
Finally, reference frame and datum handling affect the meaning of coordinates. They must state their frame, epoch, and datum, because the same mark can carry different values in different frames.
Typical Uses
Static GPS surveying earns its time cost where accuracy, traceability, or repeatability matter most.
Its classic use is establishing survey control. A project that will be mapped, designed, and built over months or years needs a stable set of control points whose coordinates are known precisely and can be recovered later. Static observations, adjusted as a network and tied to national control, provide that foundation. Later detail surveys, whether by RTK, total station, or laser scanning, can then work from those points with confidence that they agree with each other and with the wider mapping framework.
A second use is tying local surveys to a national spatial reference system. Static ties to published marks or reference stations provide that connection with a documented accuracy and an audit trail from repeat and loop checks.
A third use is deformation monitoring. Dams, bridges, landslides, and subsidence areas are observed repeatedly over months or years, and static sessions repeated with the same discipline and consistent processing can reveal movements of centimeters or less, provided the marks themselves are stable.
Static methods also establish permanent reference stations, whose coordinates are determined by long static observations processed against other stations in the network, and they support geodetic campaigns that measure slow crustal motion over wide areas.
Limitations and When Not to Use Static Surveying
Static surveying is powerful, but it is not universal. Its limits should be stated plainly so that a reader does not choose it by default.
The most obvious limit is time. A method that needs tens of minutes to hours at each point cannot compete for a detail survey with hundreds of points, unless the points are control points rather than detail points. For topographic detail, boundary detail, or setting out, kinematic or RTK methods are normally faster and entirely adequate, provided their accuracy meets the specification.
The second limit is sky visibility. Static GPS needs simultaneous observations of at least four satellites, and in practice more for a reliable fixed solution. Under dense canopy, in urban canyons, or beside tall structures, that condition may fail. A longer session can help if blockage is partial, but not if the sky is permanently blocked, where conventional optical surveying remains appropriate.
The third limit is that static results are not available in the field. A crew cannot confirm in real time that a point is correct, adjust a layout, or stake a design from a static observation alone. If the job needs immediate coordinates, RTK or a total station is the right tool, with static control established beforehand where needed.
The fourth limit is cost in equipment and expertise. For a single point of modest accuracy, that investment is disproportionate, and a simpler method is sensible. Finally, static GPS gives positions, not legal boundaries by itself. A cadastral survey also involves boundary evidence, documents, and legal principles, so precise coordinates support that work without replacing it.
Quality Checks and Deliverables
A static survey is only as trustworthy as its checks, and a client or reviewer should expect to see them. The deliverables for a well-run static survey go beyond a list of coordinates.
Field records should include, for each occupation, the point name, receiver and antenna identifiers, antenna height at start and end, start and stop times, and notes on obstructions or interruptions. Processing records should include baseline solutions, fixed or float status, adjustment residuals, and accuracy estimates. Repeat baselines and loop misclosures should be reported, because they are the evidence the network was checked.
Deliverables should also state the frame, epoch, datum, geoid model, session lengths, processing route, and any baselines rejected and why. A report with no residuals or accuracy estimates has not demonstrated quality, however precise its coordinates claim to be.
For a single point processed through an online service, the equivalent check is reading the service report: the number of reference stations used, their distances, the peak to peak agreement between independent solutions, and the reported accuracy. Large disagreements between solutions from different reference stations warn that the session was too short, the data were noisy, or the site conditions were poor, and the point should be reobserved rather than accepted on the strength of one number.
Choosing a Session Length in Practice
Bringing the planning guidance together, a practical approach to session length follows four questions.
First, how long is the longest baseline, and how accurate must it be? Longer baselines and tighter tolerances point to longer sessions. Second, how many satellites will be tracked, and what will the geometry be during the planned window? Plan on the geometry actually forecast, not an optimistic average. Third, what does the specification require? For example, NOAA guidance for GPS observations on tidal benchmarks requires at least four hours of data for publication through OPUS in that specific program. That figure is a program requirement for those benchmarks, not a general rule for every static survey. Fourth, what checking is required? If repeat baselines on different days are required, the schedule must allow for them.
A conservative habit serves most projects well: plan slightly longer than the minimum, keep the receiver running if conditions allow, and record any shortening and its effect on expected accuracy.
FAQ
What is static GPS surveying in simple terms?
It is a method where GPS receivers stay still over survey points for a planned time, record satellite signals, and the data are processed later to calculate precise positions. The receivers do not give final survey coordinates in the field. The accuracy comes from comparing simultaneous observations and from processing the data as a network.
How long does a static GPS observation take?
It depends on the baseline length, the number of satellites, the satellite geometry, and the accuracy required. Penn State guidance describes typical relative static sessions of 30 minutes to two hours, with longer sessions for longer baselines or weaker geometry. Publication programs can require longer sessions for their own purposes, so the project specification governs.
How accurate is static GPS surveying?
Accuracy varies with baseline length, session length, equipment, and conditions. Relative static work is often described in terms of parts per million, with Penn State guidance citing accuracies from 1 part per million to 0.1 parts per million over tens of kilometers. NOAA describes its OPUS post-processing service as giving coordinates accurate within a couple of centimeters when used with reference station data. Those figures are planning guides and service descriptions, not guarantees for a particular baseline, which must be checked by repeat observations and network adjustment statistics.
What is the difference between static GPS and RTK?
Static GPS keeps receivers stationary for a planned session and processes the data afterward, which gives high accuracy and a checkable record but no immediate coordinates. RTK sends corrections to a moving rover in real time, so coordinates are available in the field, but it depends on a continuous correction link and is normally used for detail and setting out rather than primary control.
What is a baseline in static GPS surveying?
A baseline is the vector between two receivers that observed the same satellites at the same time. Processing calculates that vector from the differences in their observations. Networks are built from many baselines, and closed loops and repeat baselines check them for consistency.
Why does static GPS need post-processing?
Post-processing resolves the carrier phase ambiguities, applies orbit and atmosphere models, and adjusts all baselines together into consistent coordinates. A single receiver position computed in real time from code measurements alone is far less precise, because it cannot cancel errors that differencing and network adjustment remove.
Can static GPS work under trees or beside tall buildings?
Only partly. Obstructions block or reflect satellite signals, which weakens or prevents a reliable fixed solution. Short gaps can sometimes be overcome by a longer session as satellites move, but permanent blockage requires a different method, such as a conventional total station survey, or a different control point with open sky.
Do I need special software for static GPS surveying?
Yes, in some form. Baselines must be processed with dedicated GNSS processing software or submitted to a processing service such as NOAA OPUS. The choice depends on the project: a single point may suit an online service, while a multi-point control network normally needs full processing and a least squares network adjustment, with all checks reported.
Keep reading: How Many Satellites Are in Orbit? The Active Count, the Total in Space, and Why Sources Disagree
Sources & references
- Penn State University, GEOG 862 GPS and GNSS, "Some GPS Surveying Methods"
- National Oceanic and Atmospheric Administration, National Ocean Service, "CORS and GIS: Global Positioning Tutorial"
- National Oceanic and Atmospheric Administration, National Geodetic Survey, "User's Guide for GPS Observations," updated March 2013
- National Oceanic and Atmospheric Administration Institutional Repository, "Evaluation of the Online Positioning User Service for Processing Static GPS Surveys," Journal of Surveying Engineering
